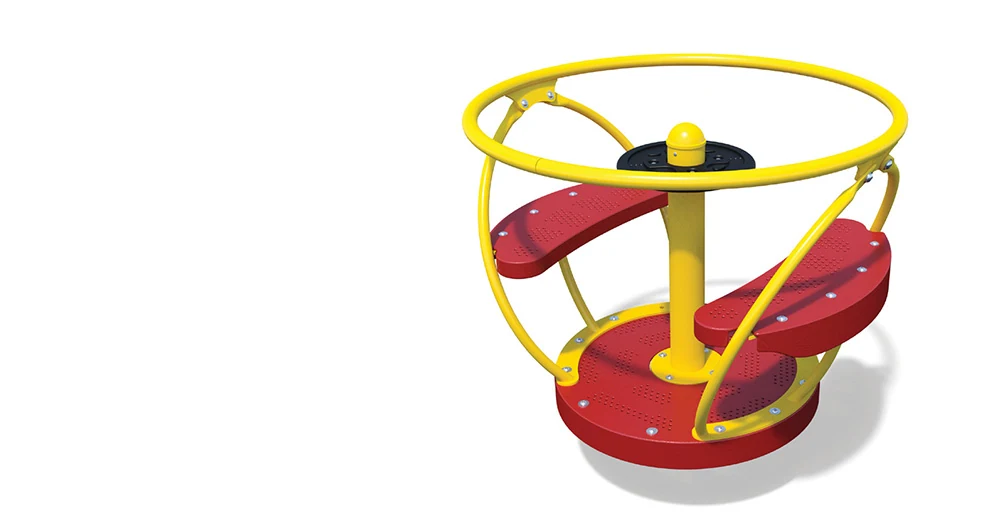

Mini-Go-Round
The Mini-Go-Round was developed for a playground bid with cost and ease of manufacture as central constraints. The project progressed from an installed first iteration to a redesign focused on assembly and installation.
- My contribution
- Product design and engineering, design for assembly, structural analysis, and catalog release.
- Design challenge
- Develop a compact playground spinner around cost, fabrication, and installation.
- Outcome
- A released product with vertical bolting and a two-part frame architecture.
01 / Development
Starting with the constraints

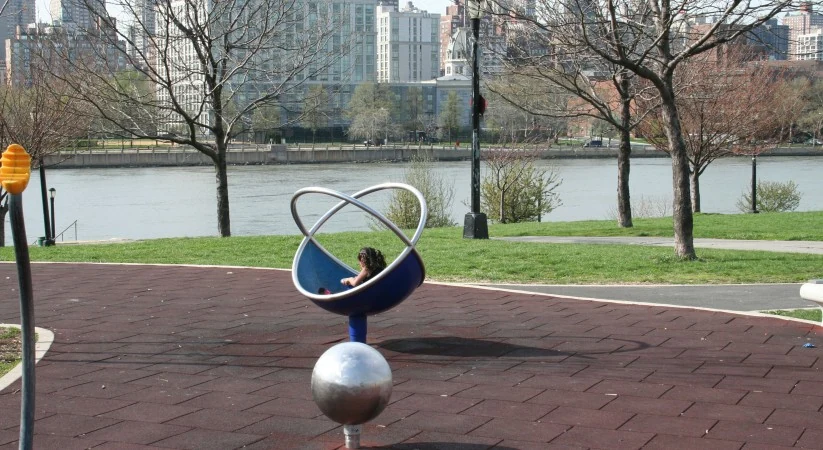

Competitive references and early sketches informed a compact architecture that was practical to manufacture. Cost and ease of manufacture shaped the first design direction.
Early sketches
02 / Development
Learning from the first iteration

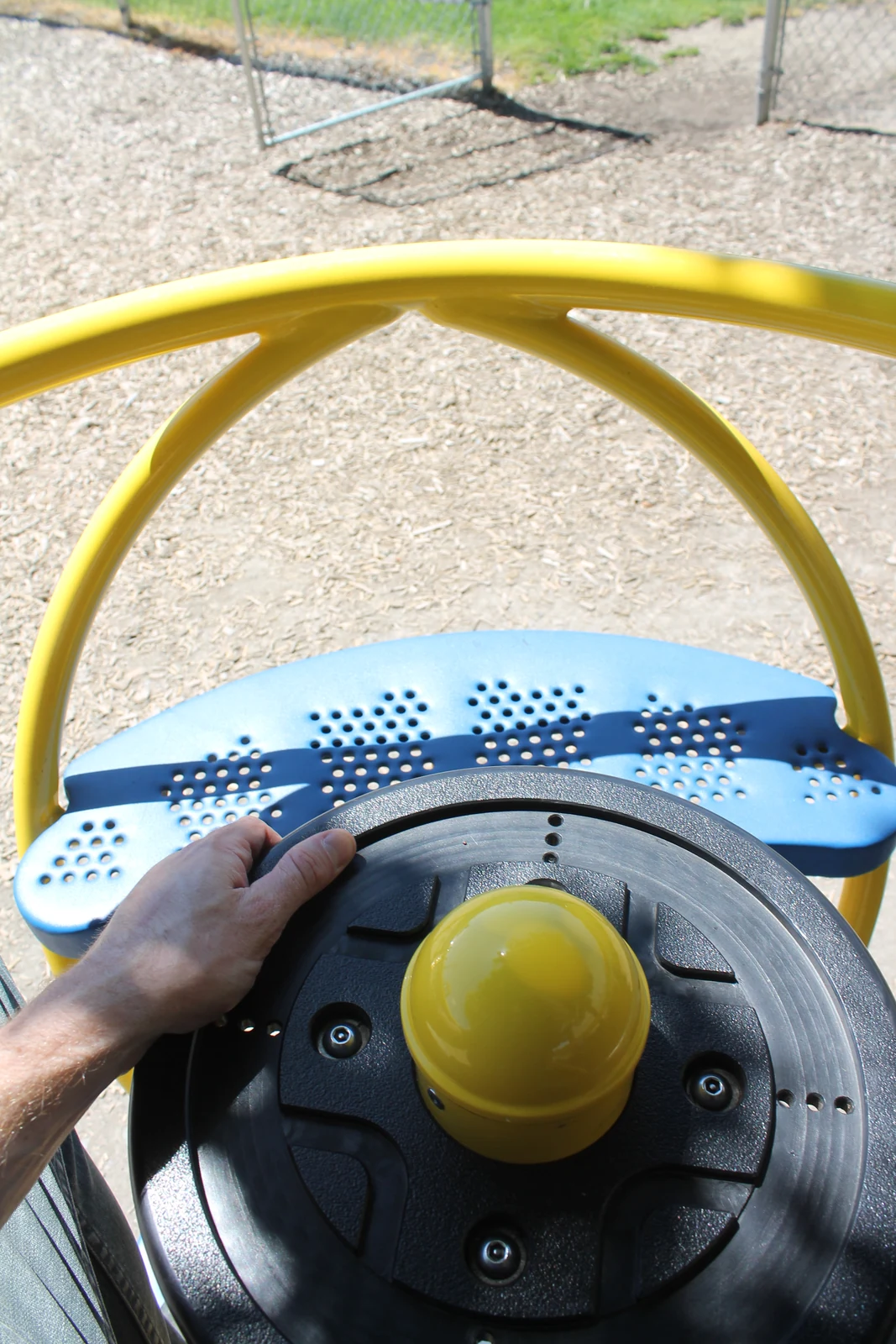

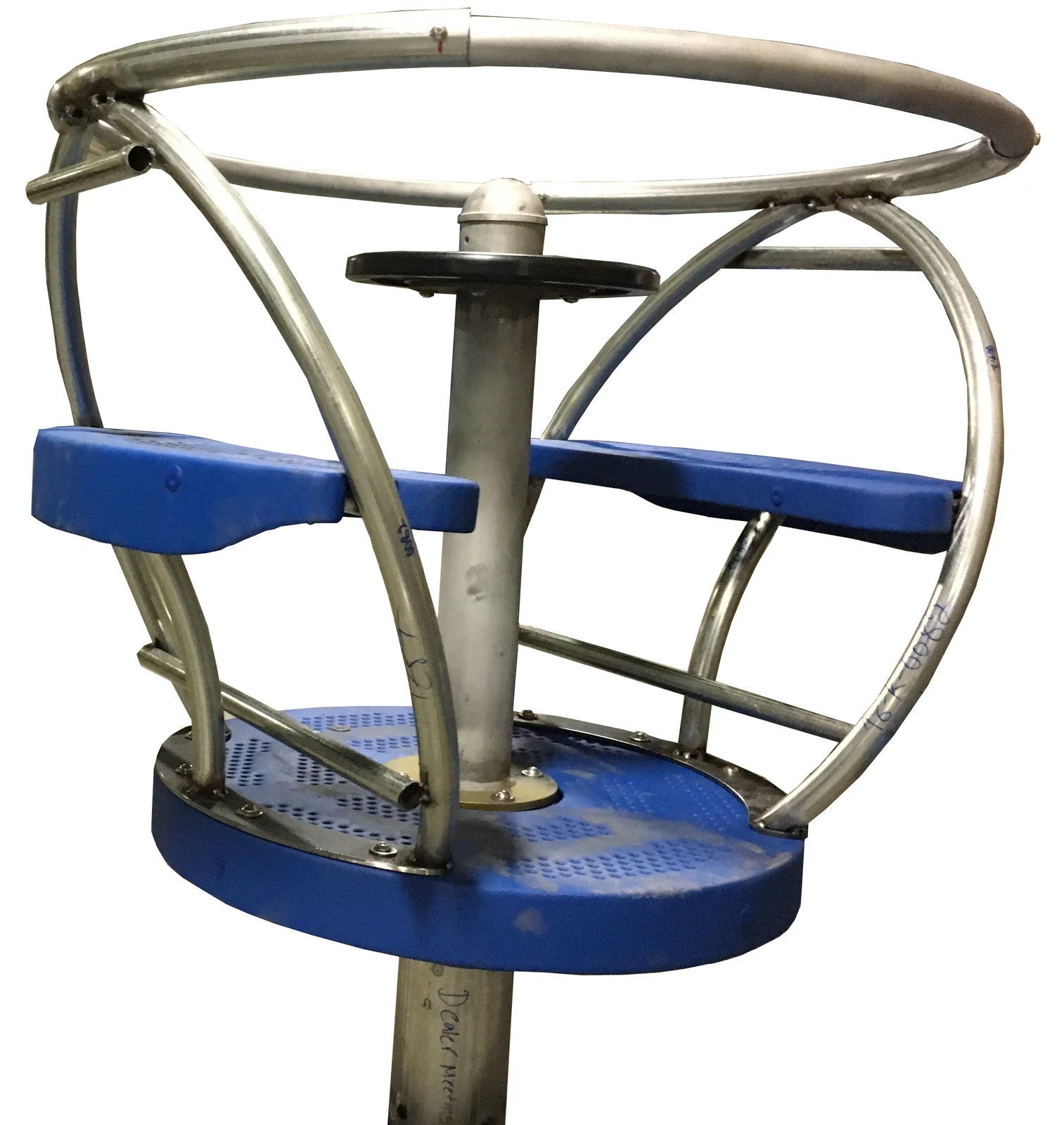

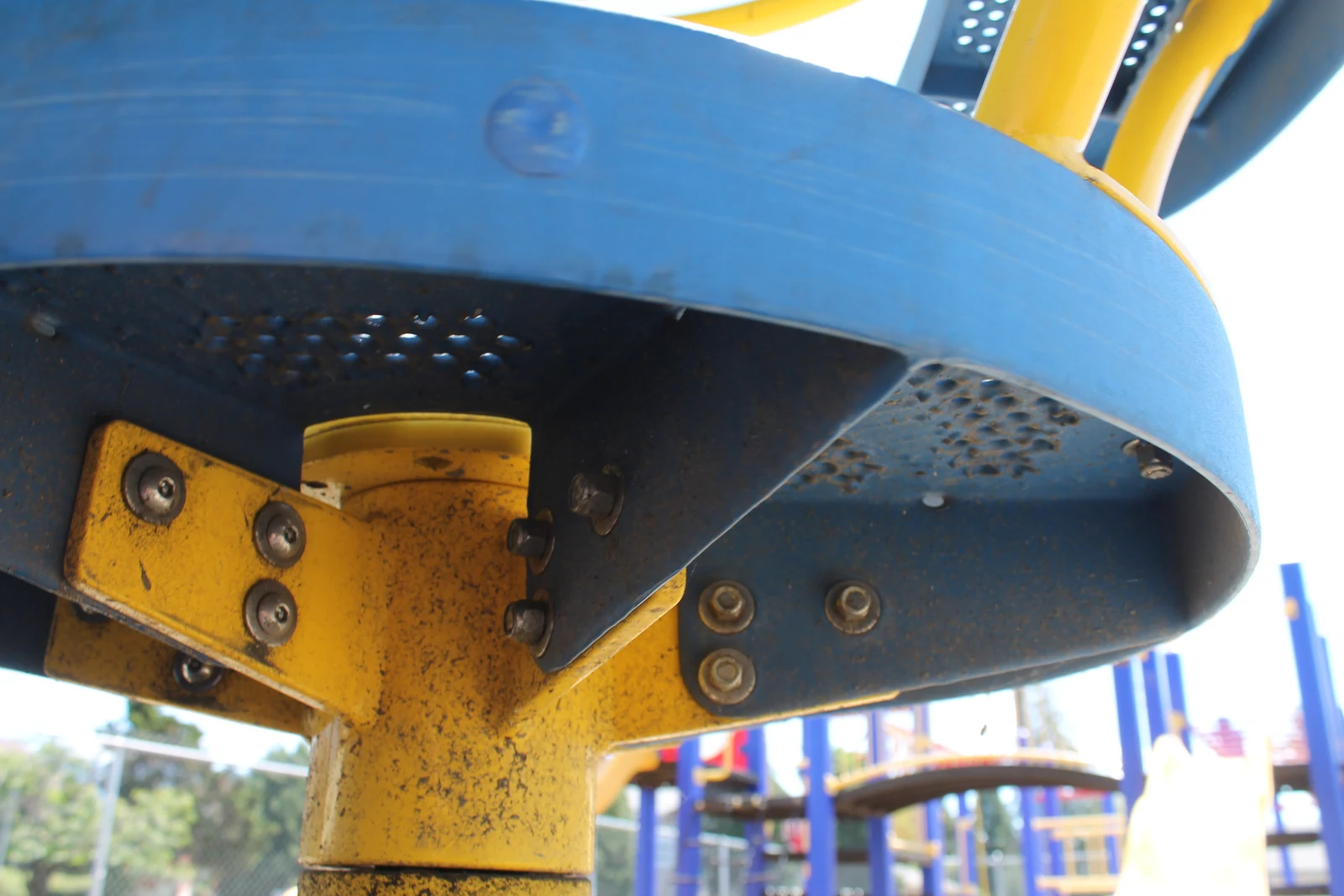

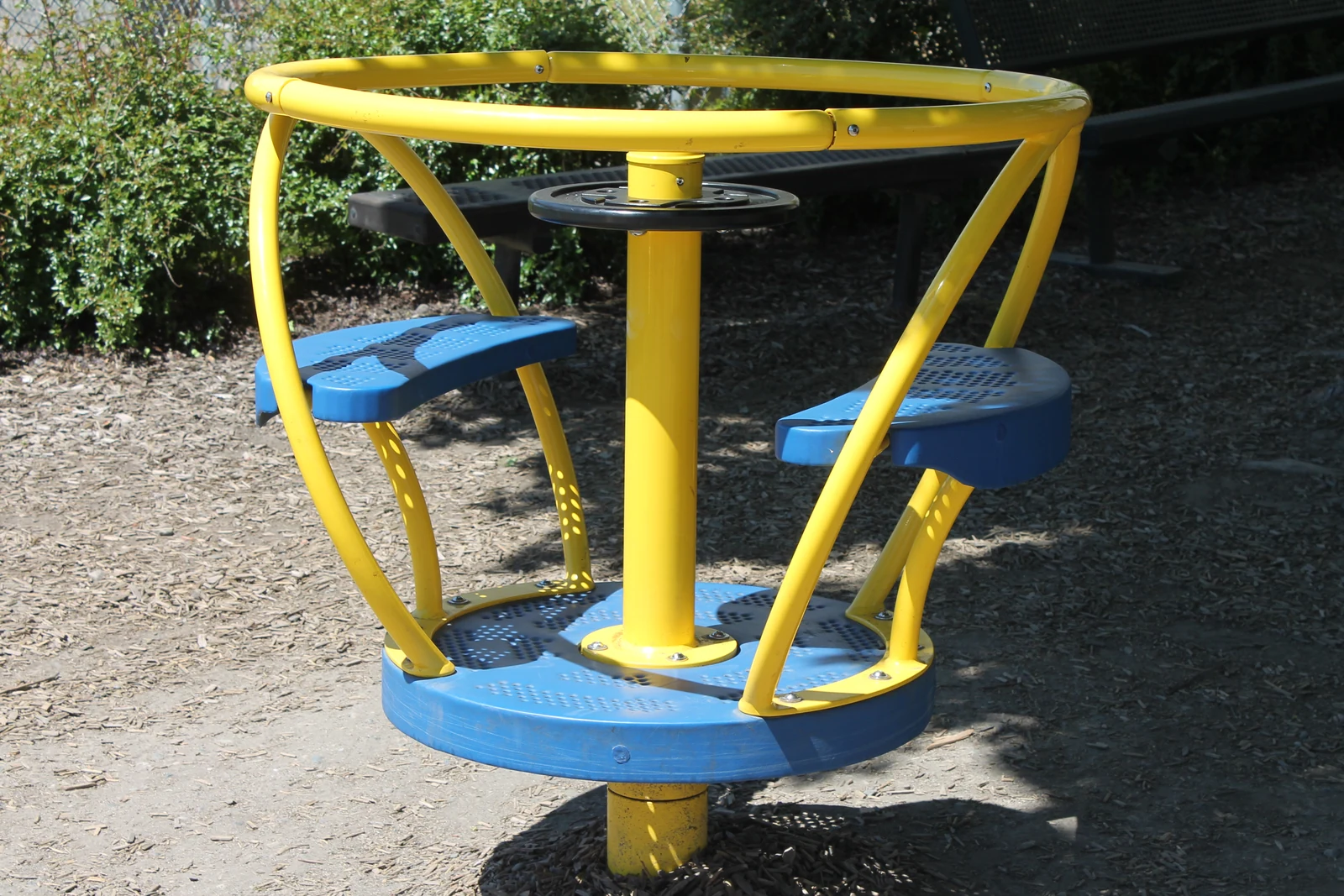

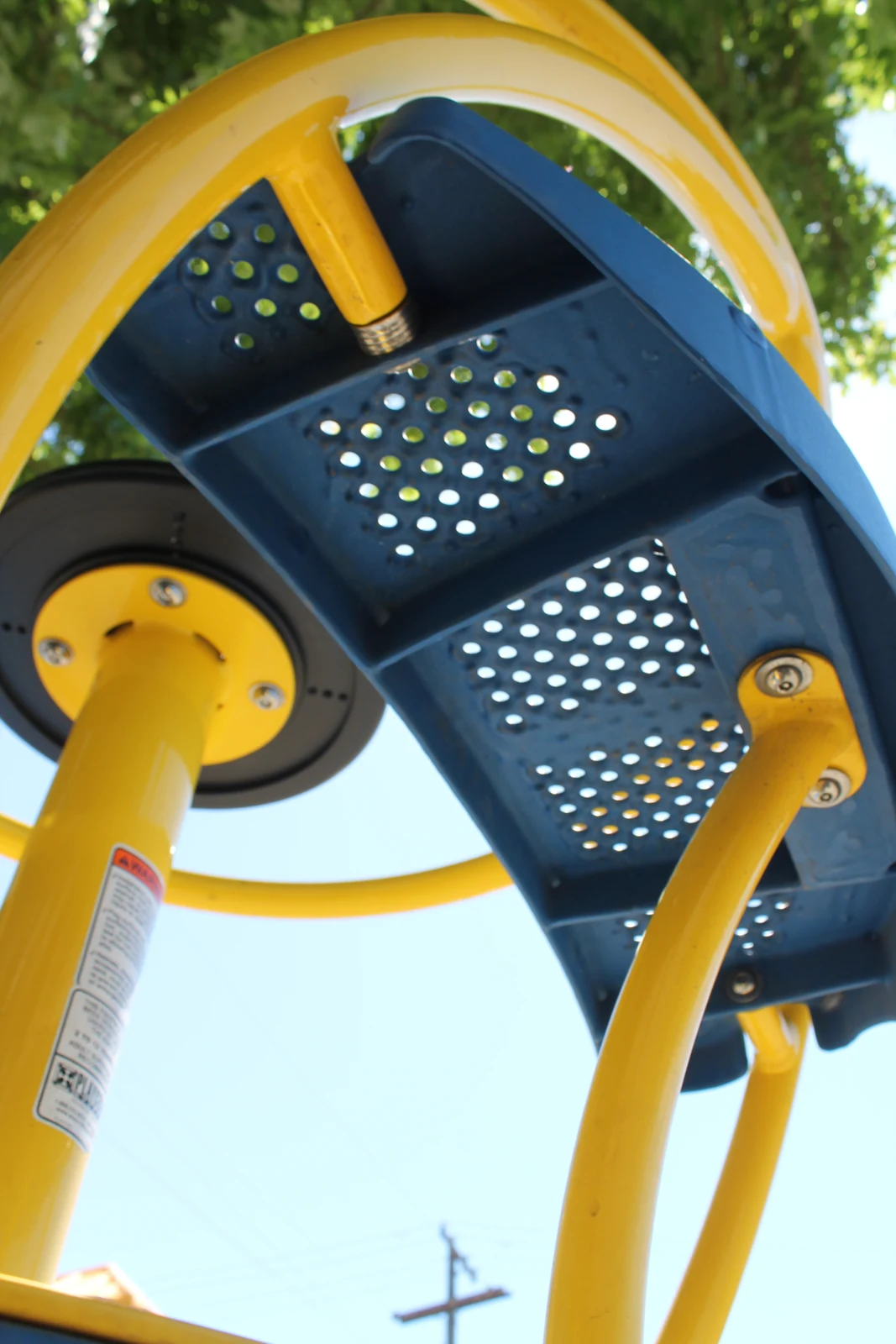

The first version combined PVC-dipped deck gussets, a bearing housing, a bench, a welded frame, and a top rail. The first field installation provided a physical view of how the components came together.
03 / Development
Redesigning for assembly

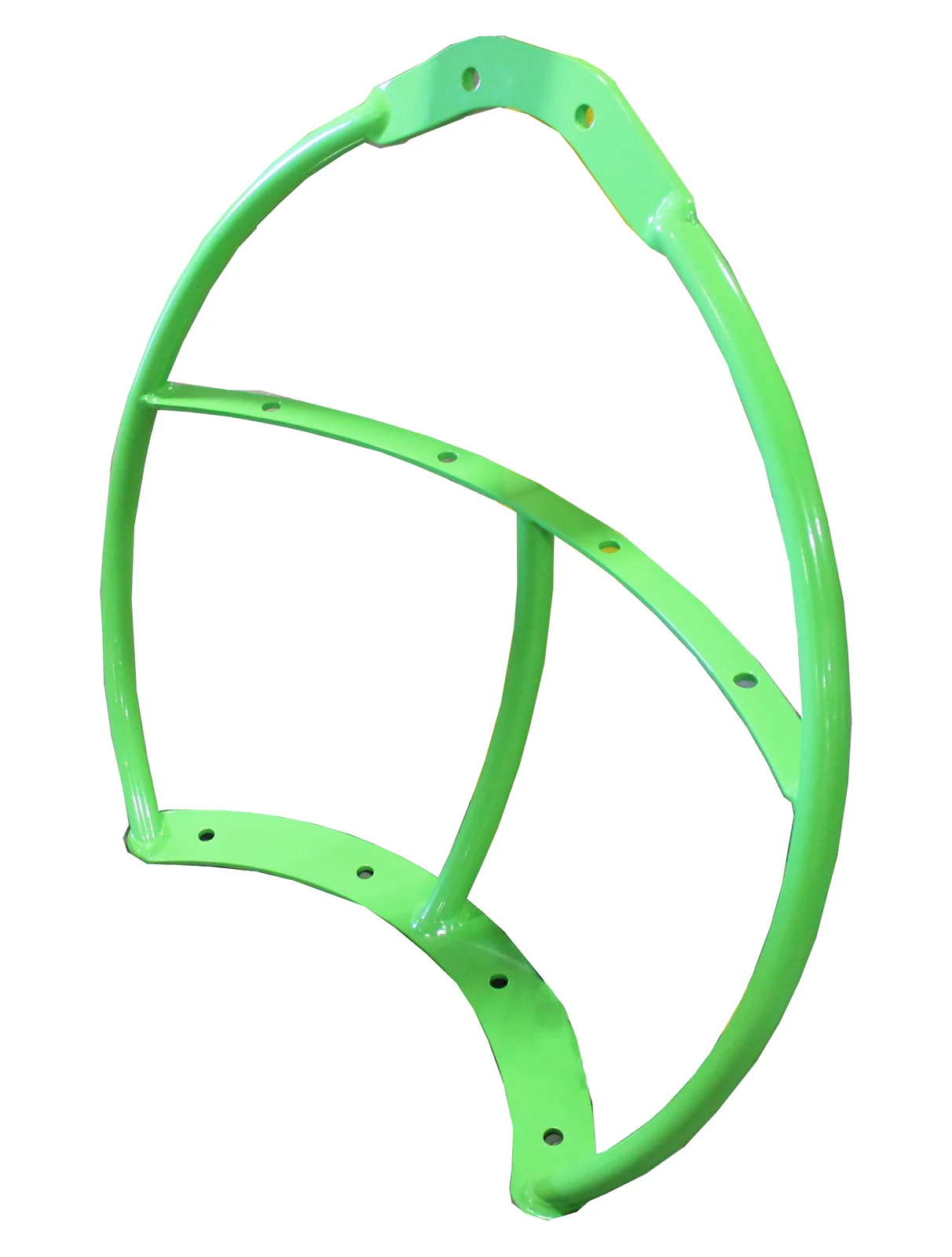

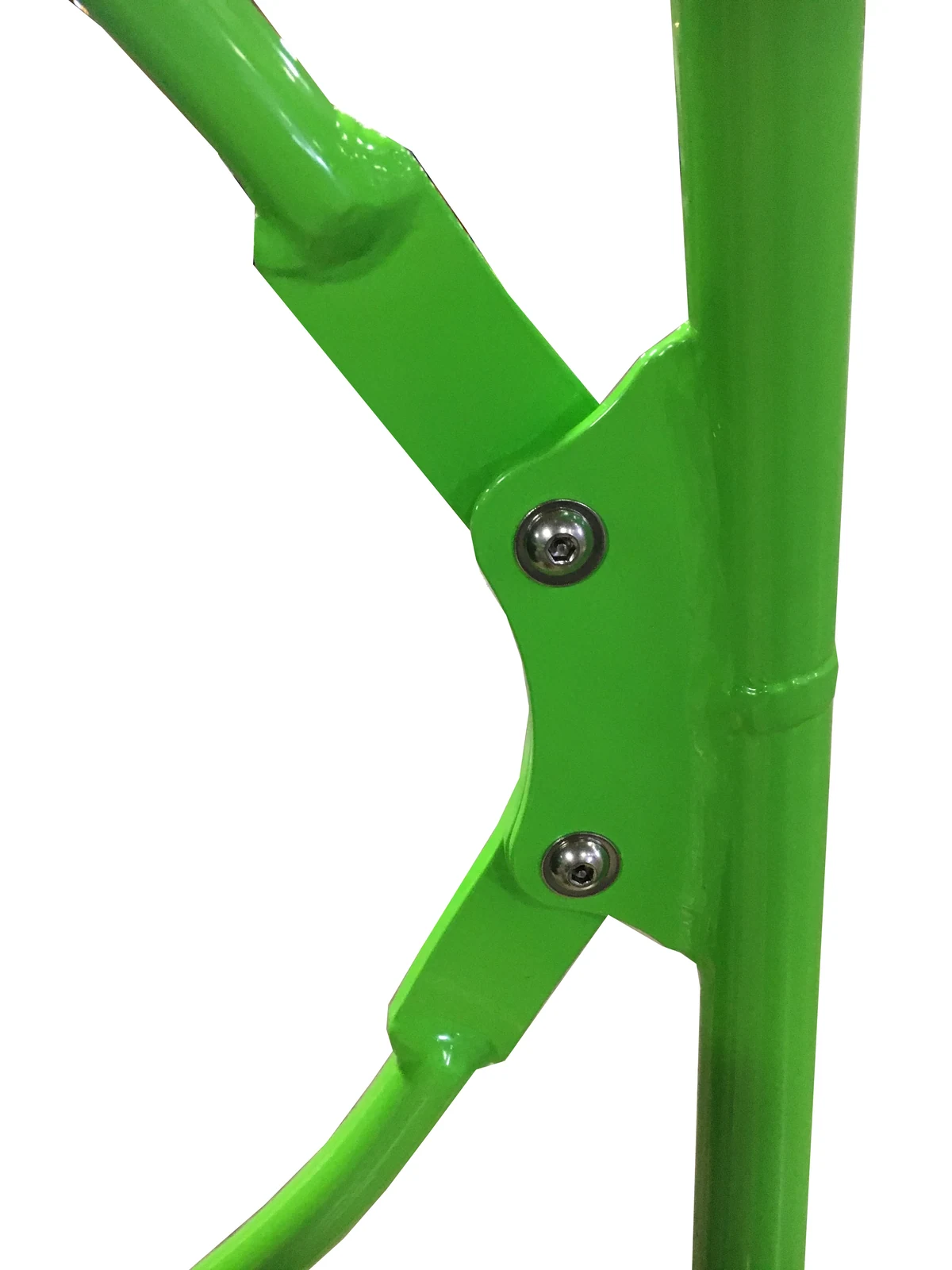

The redesign used vertical bolting and a frame divided into two parts. These changes established a more straightforward assembly sequence while retaining the product’s structural requirements.

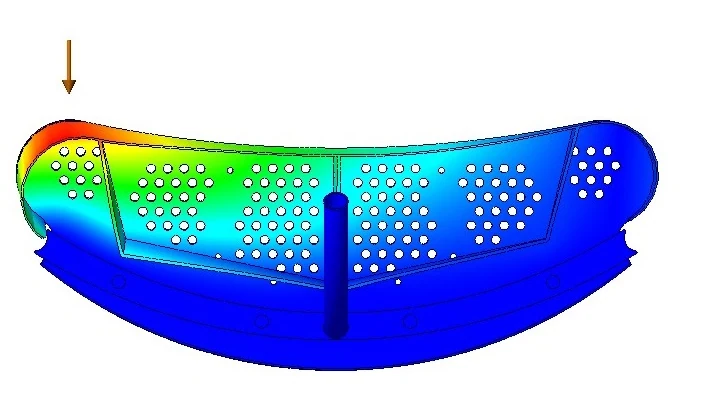

SolidWorks finite element studies examined deflection and torsion as the bracket, bench, and frame arrangement developed.

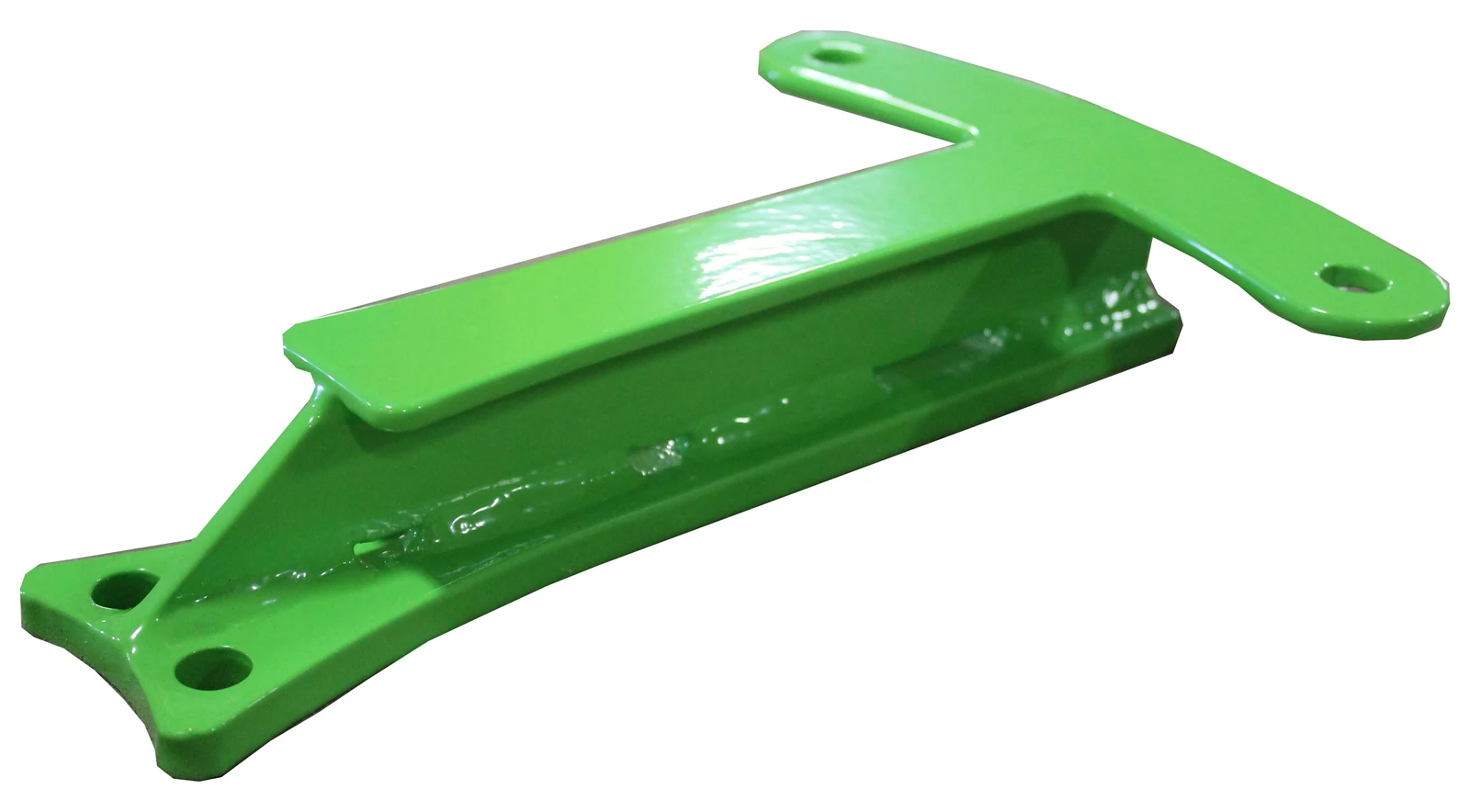

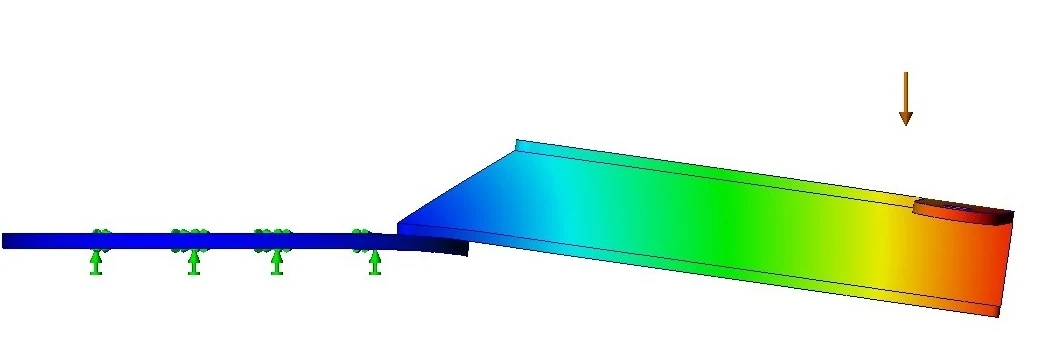

Bracket and structural study

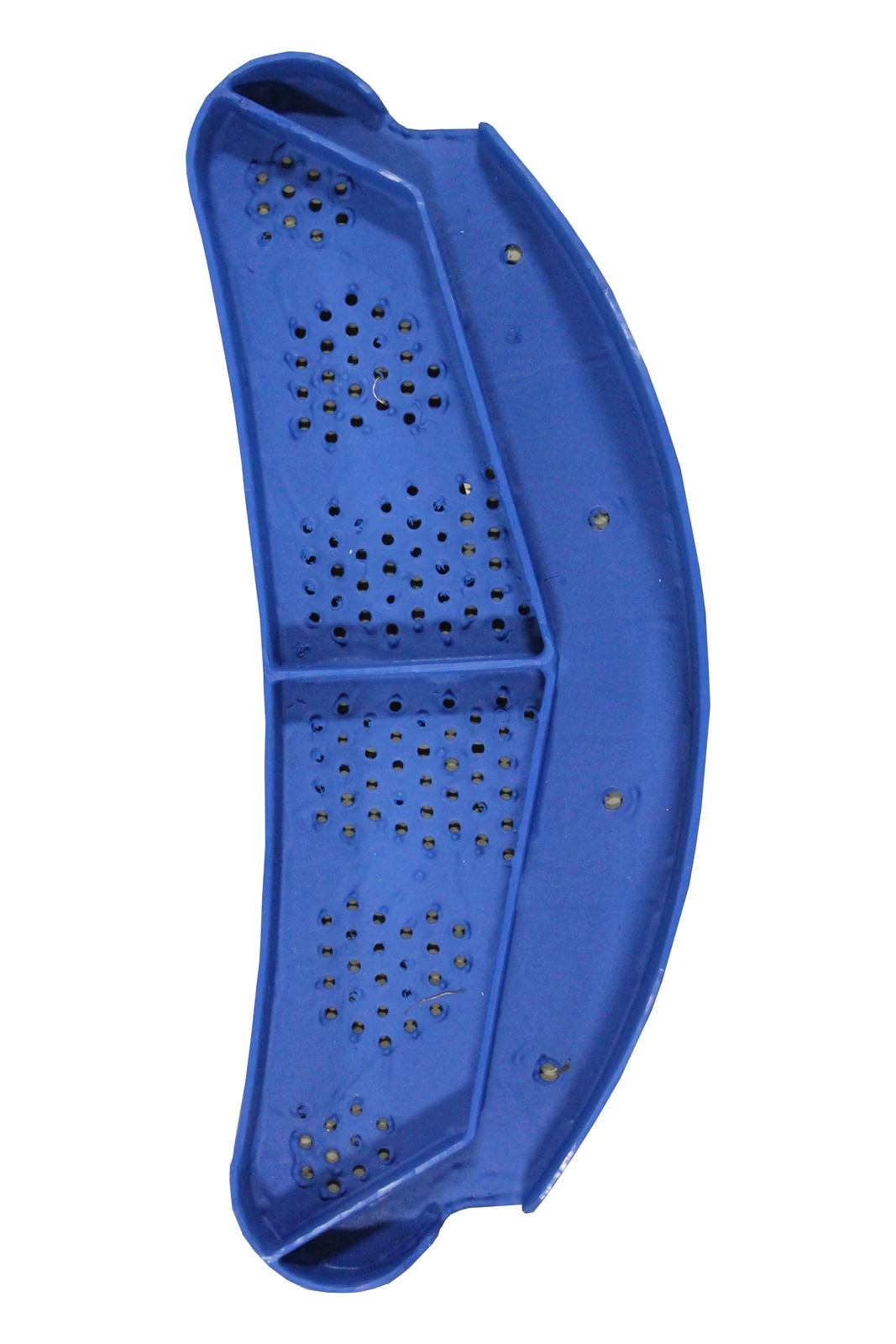

Bench and deflection / torsion study
04 / Development
Installing and releasing the product

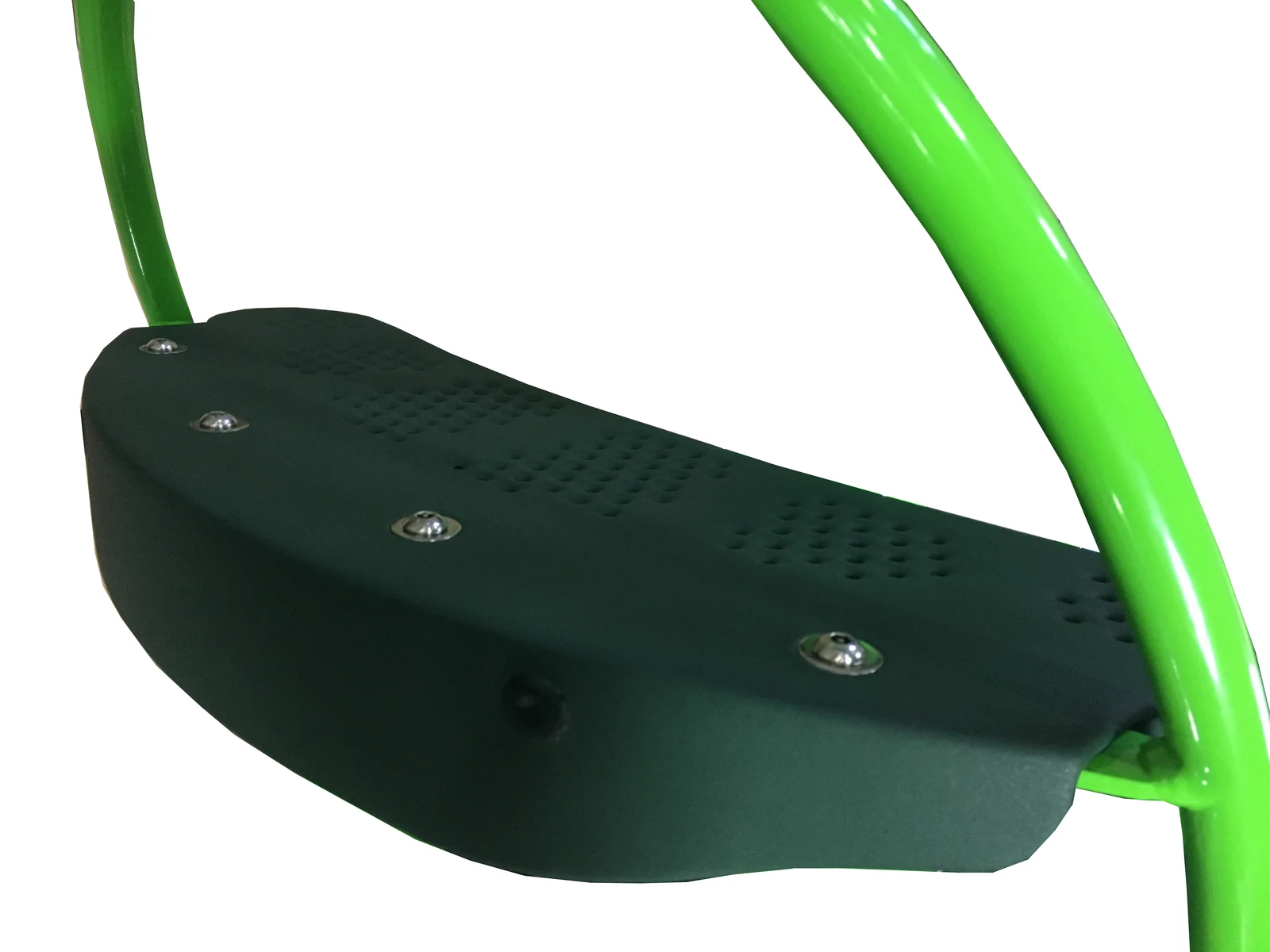

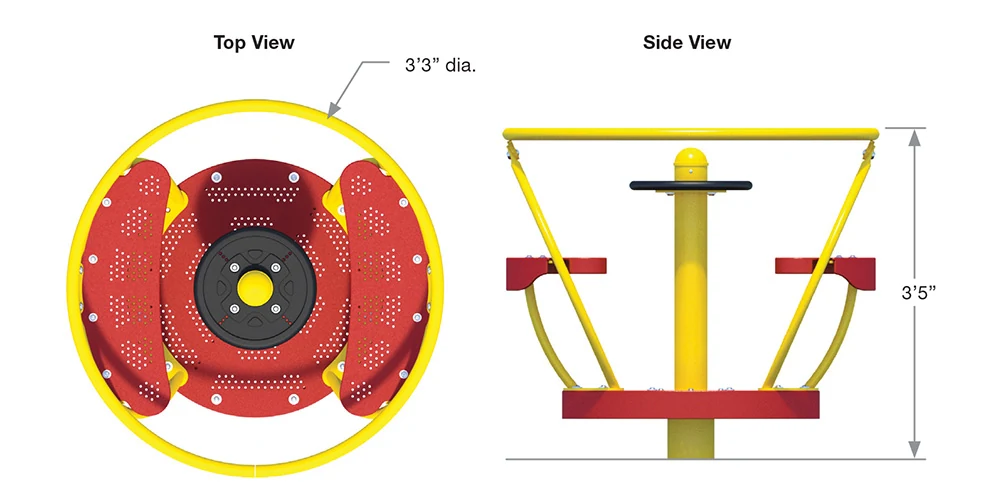

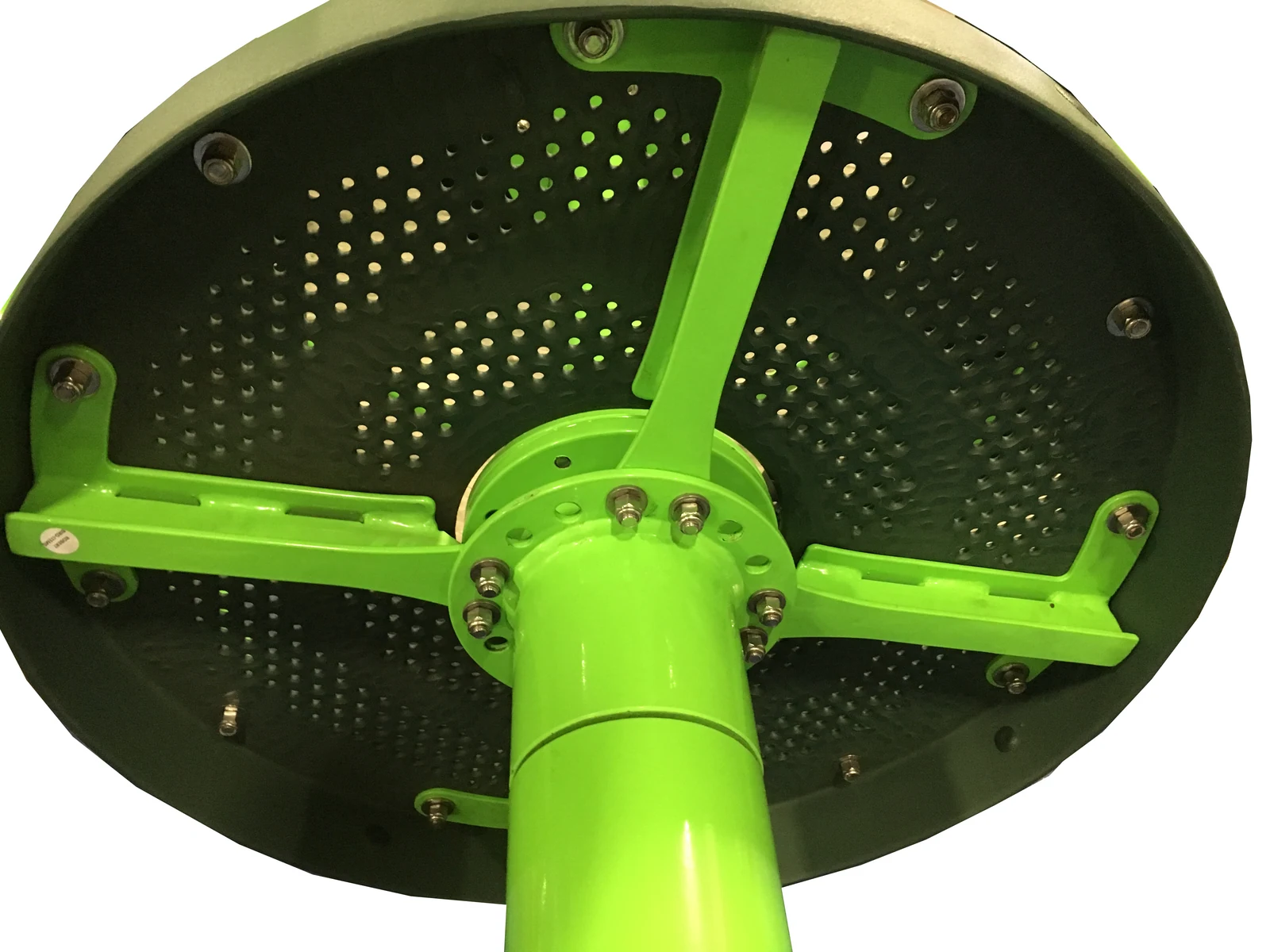

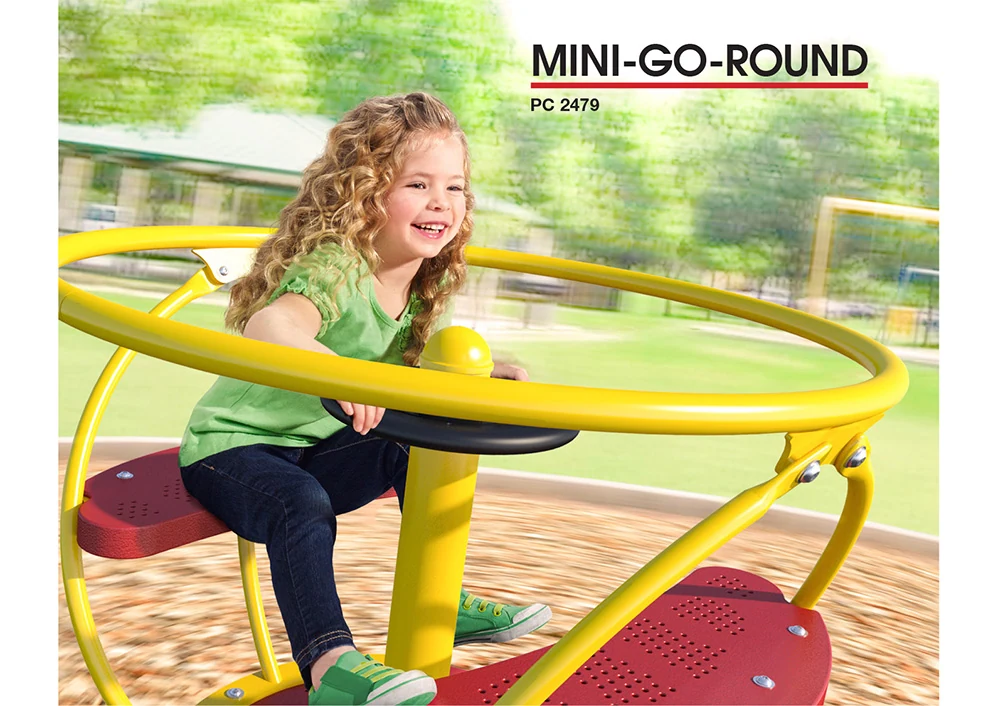

The platform and bench were installed vertically in the revised sequence. The final design moved into product release and catalog presentation.
